LS1850 Shale Shaker adopts three-phase asynchronous vibration motor as the vibration source, and is dragged by two motors to reverse self-synchronous rotation, which is the periodic reciprocating motion of the screen body along a straight line, so as to achieve the purpose of solid-liquid separation. It is mainly used for solid-liquid separation equipment in the process of mining, traversing shield and environmental protection treatment. The shale shaker can be used alone, or can be used in double or multi-combination.

Xi 'an Kosun LS1850 Shale Shaker adopts three-phase asynchronous vibration motor as the vibration source, and is dragged by two motors for reverse self-synchronous rotation, which is the sieve body to do periodic reciprocating motion along a straight line, so as to achieve the purpose of solid-liquid separation. The double-layer screening design can effectively subdivide the material, and the total screen area reaches 18 square meters (9 square meters per layer), ensuring that the material has sufficient residence time on the screen, so as to achieve efficient screening effect.

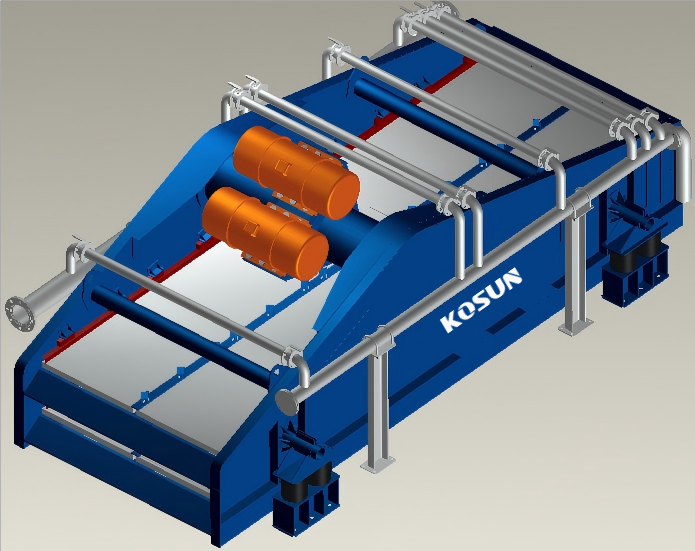

                                                                                                        LS1850 Shale Shaker

Application:

LS1850 Shale Shaker is mainly used in mining, through the shield, environmental protection treatment process of solid-liquid separation equipment,

the vibrating screen can be used alone, can also be used in double or multiple.

LS1850 Shale Shaker Features:

1, choose OLI (international well-known brand) two 7kw vibration motor with large excitation strength, to ensure strong vibration performance and stable operation.

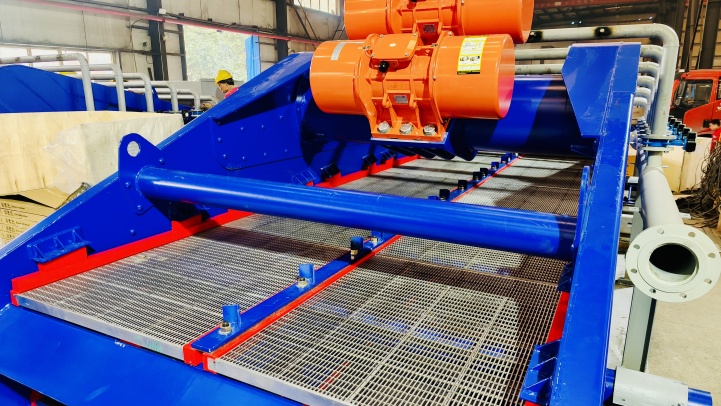

2, the selection of high strength, good plasticity, corrosion resistance and beautiful and durable stainless steel seam screen, through the wedge and the combination of the lock bolt fixed,

 to ensure that the high frequency vibration is stable and not fall off, and easy to replace.

3, the use of international well-known brand Tenida imported spring, to provide excellent flexibility and reliability.

4. The system supports manual and automatic operation modes. In the automatic mode, the PLC program communicates with the host computer to achieve the purpose of automatic control,

 with a high degree of automation, simplifying the operation process and improving work efficiency.
