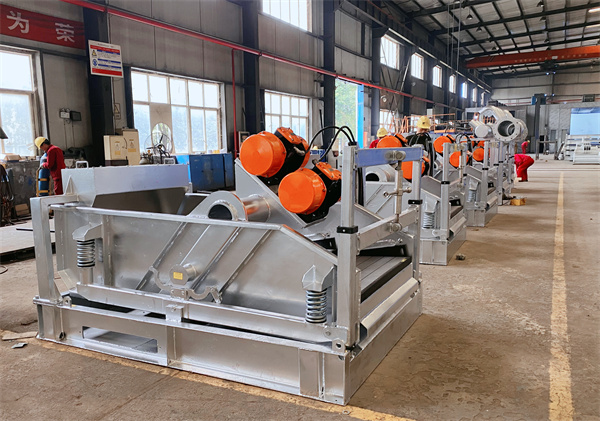

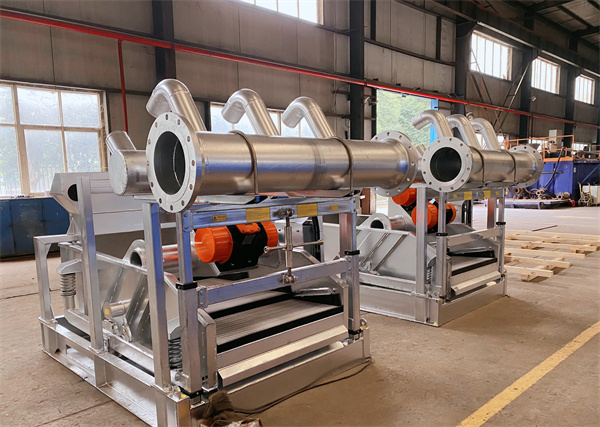

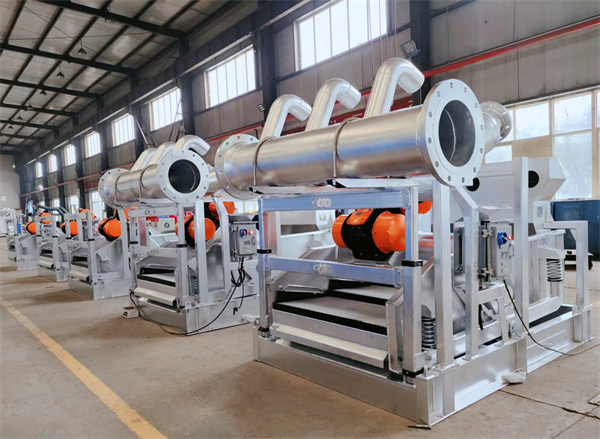

Xi 'an KOSUN double-track shaker screen has two kinds of running tracks: linear and asymptotic ellipse, linear running track has high vibration intensity, fast material conveying speed and large processing capacity;

The progressive elliptic trajectory has the advantages of high drilling fluid recovery, drier solid phase, long screen life and less clogging. The operation of the equipment is simple, and the conversion of the two running tracks can be easily realized through the switch knob to adapt to the requirements of different working conditions on the site.

Applications:

Two-track vibrating screen is a solid control equipment for drilling mud, which is used to separate solid particles with particle size greater than 76μm in drilling fluid. Application fields: large oil rig supporting, large trenchless drill supporting, shield engineering supporting, river dredging engineering supporting, etc.

Features:

1, double track vibrating screen can be customized special hot dip galvanizing process, the combination of galvanizing layer and equipment is better, the thickness of galvanizing layer is moderate and not easy to fall off, and the internal and corner galvanizing area is closely bonded.

2, novel shape, beautiful, suitable for long-term corrosive gas working environment.

3, more suitable for long-term operation in coastal areas.
