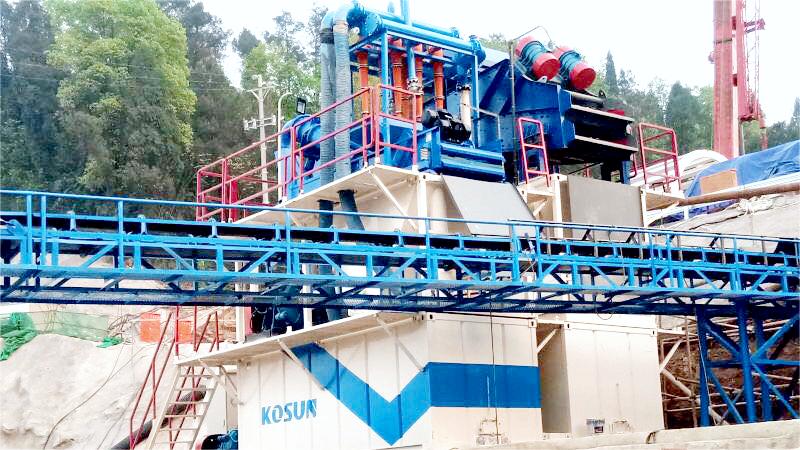

The KD Slurry treatment system designed and manufactured by kosun Solid Control can be used in mud-water balance shield and pipe jacking construction projects. The mud of shield and pipe jacking construction is sent to the mud-water separation equipment through the pump, and separated by the vibrating screen, sand separator, mud separator, decanter centrifuge, which can meet the continued use of mud. If the mud needs to be discharged or the very small fine particles in the mud need to be removed to treat the aged and discarded mud, the mud can be dehydrated with kosun Solid Control's large rotation decanter centrifuge combined with the flocculant configured with the chemical dosing unit to discharge clean water or water for reuse.

kosun is capable of manufacturing a full range of slurry separation equipment, as well as large rotation decanter centrifuges. All core equipment is independently developed and manufactured, so that the system configuration is more reasonable and more stable.

Usually use 4 stage separation treatment, shaker, desander, desilter, centrifuge to make the mud separation cleaner.

Compact, modular design for easy installation and movement on site.

International marketing service network, can meet the domestic and foreign customers fast service.

The vibrating screen has high exciting force and high separation efficiency

Decanter centrifuge has a high degree of automation, saves manpower and improves the comprehensive treatment effect.

According to the different needs of customers, it can also be customized according to the situation of customers.

Main processes of kosun Shield and pipe jacking sludge water separation equipment:

The first coarse screen is used to screen the rock large particle material in the shield mud.

The slurry centrifugal pump sends the slurry after the first stage of screening into the sand cyclone.

The solid phase separated by the desanding cyclone falls into the matching dewatering vibrating screen at the bottom for dewatering treatment.

Another mud centrifugal pump pumps mud to a desilting cyclone for separating solids over 20 microns.

Solids separated by the desilting cyclone also fall into the bottom dewatering shaker for dewatering.

Without the addition of chemicals, decanter centrifuges can mechanically separate solid particles of 2-5 microns.

Ultrafine particles can be fully separated by working with kosun decanter and chemical dosing device to obtain clean water for recycling or to meet discharge requirements.
