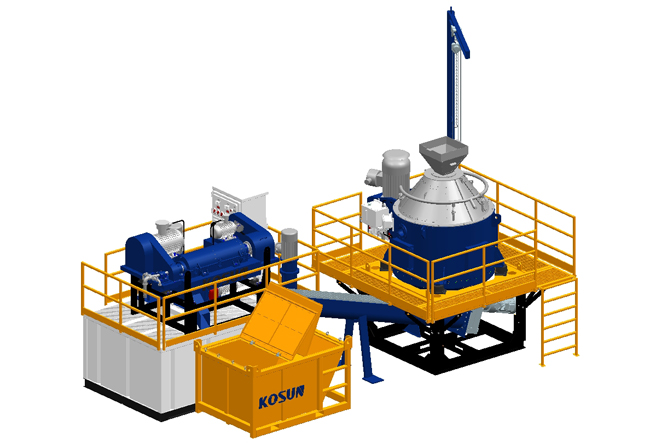

Recently, A set of Oil Based Mud Cutting Treatment System of KOSUN has been successfully sold to Daqing Oilfield. The main equipment of the Oil Based Mud Cutting Treatment System includes Vertical cutting dryer, decander centrifuge, mud agitators, screw conveyors, mud tanks and electrical systems. This Oil Based Mud Cutting Treatment System will be delivered by the end of this month.

Treatment Effects of KOSUN Oil Based Mud Cutting Treatment System:

For oil-base and synthetic-base mud: water content of solids treated by the vertical centrifuge is below 6%.

Features & Benefits of KOSUN Oil Based Mud Cutting Treatment System:

1.Efficient solid-liquid separation. Liquid content of treated solids is up to national and industrial standards.

2.Effective recovery of treated liquid for recycling in drilling solids control system.

3.Greatly reduce solid discharge volume, drilling fluid cost and waste management cost.

4.Meet field operation requirements on zero discharge of drilling waste.

5.Rotate at a high speed of 900RPM to generate a centrifugal force of 430G and effectively separate liquid from cuttings.

6.Flights coated with wear-resistant material and metal screens for longer service life.

7.Intelligent pulse jet control system effectively prevents screen blockage.

8.Separate oil circuit lubricating and cooling system for simple and reliable operation.

9.Integrated programmable control system for safe and convenient operation.

10.Feed/discharge ports can be equipped with screw conveyors to facilitate drilling cuttings conveying and continuous equipment operation.

Working principle of KOSUN Oil Based Mud Cutting Treatment System:

Oil-base mud cuttings enter the top hopper of vertical centrifuge and fall onto its internal separation area. The internal cone rotates at a high speed of 900RPM and generates a centrifugal force of 430G. For density difference between liquid and solids, mud is hurled out of surface of drilling cuttings and passes through screens, and solids are retained inside the screens. And then, liquid is discharged from the liquid outlet and dry solids are discharged from the bottom of equipment. Send an equiry by email sales@adkosun.com.
